Intel® Galileo

Easy entry with expert power. Intel Galileo is an excellent learning platform that can meet the demands of advanced projects.

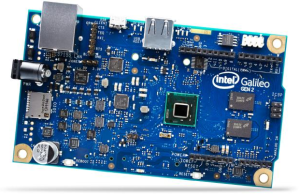

The Intel® Galileo Gen 2 board is the first in a family of Arduino*-certified development and prototyping boards based on Intel® architecture and specifically designed for makers, students, educators, and DIY electronics enthusiasts.

Providing users with a fully open source hardware and software development environment, the Intel Galileo Gen 2 board complements and extends the Arduino line of products to deliver more advanced compute functionality to those already familiar with Arduino prototyping tools. The Intel Galileo Gen 2 development board is designed to be hardware-, software-, and pin-compatible with a wide range of Arduino Uno* R3 shields and additionally allows users to incorporate Linux* firmware calls in their Arduino sketch programming.

Key features of Intel® Galileo

• Intel® Quark™ SoC X1000 application processor, a 32-bit, single-core, single-thread, Intel® Pentium® processor instruction set architecture (ISA)-compatible, operating at speeds up to 400 MHz.
• Support for a wide range of industry standard I/O interfaces, including a full-sized mini-PCI Express* slot, 100 Mb Ethernet port, microSD* slot, USB host port, and USB client port.
• 256 MB DDR3, 512 kb embedded SRAM, 8 MB NOR Flash, and 8 kb EEPROM standard on the board, plus support for microSD card up to 32 GB.
• Hardware and pin compatibility with a wide range of Arduino Uno R3 shields.
• Programmable through the Arduino integrated development environment (IDE) that is supported on Microsoft Windows*, Mac OS*, and Linux host operating systems.
• Support for Yocto 1.4 Poky* Linux release.

Advantages of the Intel® Galileo Gen 2 board

• 6-pin 3.3V USB TTL UART header replaces 3.5 mm jack RS-232 console port for Linux debug. New 6-pin connector mates with standard FTDI* USB serial cable (TTL-232R-3V3) and popular USB-to-Serial breakout boards. 12 GPIOs now fully native for greater speed and improved drive strength.
• 12-bit pulse-width modulation (PWM) for more precise control of servos and smoother response.
• Console UART1 can be redirected to Arduino headers in sketches, eliminating the need for soft-serial in many cases.
• 12V power-over-Ethernet (PoE) capable (PoE module installation required).
• Power regulation system changed to accept power supplies from 7V to 15V.
• The Intel® IoT Developer Kit for Intel Galileo Gen 2 adds C, C++, Python, and Node.js/Javascript support for developing connected sensor Internet-of-Things applications.
• Intel Galileo also supports the Wyliodrin platform that provides C, Python, Node.js and Visual Programming environments from a remotely-connected browser.
• In addition to open source Yocto Linux, Intel Galileo Gen 2 supports VxWorks (RTOS), and now Microsoft Windows is supported directly from Microsoft.

Useful links for Intel® Galileo

• Product Brief and Technical Specification
• Galileo Video
• Galileo Documentation
• Galileo Architecture

Visit Intel Developer Community Forum


Visit Downloads & Documentation for the latest software updates, getting started guides, and other documentation needs.

Intel® Edison

The Intel® Edison platform is a solution designed to lower the barriers to entry for quick prototyping and productizing the connected computing devices driving the next industrial revolution. This wave of connected devices will be a diversified collection of products invented for specific consumers and consumer needs. Intel® Edison technology was designed specifically for the creators of these devices—emerging entrepreneurs eager to invent the future. It combines a small, powerful, adaptable hardware platform and partner-enabled ecosystem with extended software compatibility and supportive online environment. With the solution offered by the Intel Edison platform, your imagination is the only obstacle between you and your invention.

Small, powerful, and adaptable hardware

• High performance, dual-core CPU and single core micro-controller supports complex data collection in a low power package.
• Integrated Wi-Fi, Bluetooth Low-Energy* (LE), memory, and storage simplifies configuration and increases scalability.
• 40 multiplexed GPIO interfaces with expansion board options for total project design and flexibility.

Software compatibility

• The Intel® IoT Developer Kit for Intel® Edison development platform adds C, C++, Python, and JavaScript support for developing connected sensor Internet of Things applications.
• Supports a variety of integrated development environments such as Arduino*, Eclipse*, Wyliodrin*, and Intel® XDK.

Supportive environment

• Managed online community for project ideas and engagement with other product users.
• Intel product-expert support and open source community software tools.
• Access to device-to-device and device-to-cloud connectivity framework to enable cross device communication and a cloud based, multi-tenant, time-series analytics service.

Key technical features
At the center of the Intel® Edison board is an Intel® Atom™ 22nm SoC with a dual-core CPU at 500Mhz and a MCU at 100Mhz. This allows the product to collect and preprocess data via the MCU in a low power state and hand the filtered data off to the CPU for analytics. The Intel® Edison board includes 1GB of memory, 4GB of storage and dual-band Wi-Fi and Bluetooth* 4.0 for communications. It supports 40 GPIOs with multiple configuration options.

Useful links for Intel® Edison

• Edison Overview & Videos
• Edison Architecture
• Example

Visit Intel Developer Community Forum

Visit Downloads & Documentation for the latest software updates, getting started guides, and other documentation needs.

Intel® System Studio 2015

The explosion of connected smart devices – expected to reach 50 billion by 2020 – is driving unprecedented need for efficient tools to meet shorter development cycles for system software and embedded c applications.

Intel® System Studio 2015 does exactly that, enabling developers to get the most out of Intel® architecture-based systems and embedded applications.

Intel® System Studio 2015 is a comprehensive and integrated tool suite that provides developers with advanced system tools and technologies to help accelerate the delivery of the next-generation, energy-efficient, high-performance, and reliable embedded and mobile devices.

Intel® System Studio is a fully validated and Intel-supported product optimized for Intel® architecture, while being compatible with open source technologies.

What’s New

• New platform support
• Enhance developer productivity
• Performance and power efficiency
• View the Intel® System Studio product brief ›

Choose the Edition for Your Requirements

Intel® System Studio 2015 Composer Edition
Integrates into Eclipse* and Visual Studio* (depending on supported target OS) for quick-start development, along with industry-leading Intel® compilers and libraries (such as Intel® Threading Building Blocks application threading library, or Intel® Integrated Performance Primitives), readiness for Android* 64-bit platforms, and support for Windows*-powered embedded c applications.

Intel® System Studio 2015 Professional Edition
Includes everything in Composer Edition, plus advanced performance and energy profiling tools to identify gaps and correctness analyzers for more code robustness. Intel® VTune™ Amplifier for Systems is a powerful performance profiling tool to identify performance issues down to source code level. It provides easy remote target collection and an intuitive user interface to filter and view results. Intel® Energy Profiler is a key capability to improve power efficiency and battery life for Intel® Architecture-based devices. Intel® Inspector for Systems enhances system and application robustness by identifying memory and threading conflicts. For graphics based embedded application systems, Platform and Frame Analyzers are available to provide a holistic view of system-wide CPU and graphic core workloads.

Intel® System Studio 2015 Ultimate Edition
Includes everything in Professional Edition, plus hardware-assisted debug and trace (low-overhead processor trace in the new Intel® Core™ M processor) for easier defect isolation, and SoC JTAG and EFI agent-associated debugging for deep system insights. These features help accelerate time-consuming tasks such as board bring-up, OS/kernel and driver development.

Choose the tool suite that meets your needs

Choice 1: For Linux* targets
Choice 2: For Android* targets
Choice 3: For Windows* targets

Intel® System Debugger for Wind River* VxWorks*

Intel® System Studio 2015 Ultimate Edition provides a comprehensive JTAG-based debug solution with VxWorks* OS awareness. If you want to learn more about Intel® System Debugger OS awareness for VxWorks* please consult the product brief below.

View the Intel® System Debugger product brief ›
Additional support on how to use the Intel® System Debugger for VxWorks* ›

Intel® IoT Gateways DK300 series development kit

Intel® IoT Gateways DK300 series development kits are optimized for industrial, energy and transportation applications. They can help you quickly develop, prototype, and deploy intelligent gateways. The kits also help maintain interoperability between new intelligent infrastructure and legacy systems, including sensors and datacenter servers. The kits include pre-integrated and pre-validated hardware and software from Intel, McAfee, and Wind River, helping you reduce time-to-market and development costs.

DK300 series development kit features

• Standards-based interfaces for I/O and Wi-Fi simplify communications down to sensors and controllers and up to datacenters and the cloud.
• McAfee Embedded Control* maximizes security by dynamically monitoring and managing whitelists.
• Wind River Intelligent Device Platform* XT and Wind River Workbench* provide a proven development environment.
• Kits are complete with fully-configured compute board, wireless communications, security software, operating system, development tools, chassis, power supply, antennas, and documentation.

Learn more details about all Intel® IoT Gateway development kits >

Intel® IoT Gateways DK200 series development kit

Intel® IoT Gateways DK200 series development kits are optimized for transportation applications. They can help you quickly develop, prototype, and deploy intelligent gateways. The kits also help maintain interoperability between new intelligent infrastructure and legacy systems, including sensors and datacenter servers. The kits include pre-integrated and pre-validated hardware and software from Intel, McAfee, and Wind River, helping you reduce time-to-market and development costs.

DK200 series development kit features

• Standards-based interfaces for I/O and Wi-Fi simplify communications down to sensors and controllers and up to datacenters and the cloud.
• McAfee Embedded Control* maximizes security by dynamically monitoring and managing whitelists.
• Wind River Intelligent Device Platform* XT and Wind River Workbench* provide a proven development environment.
• Kits are complete with fully-configured compute board, wireless communications, security software, operating system, development tools, chassis, power supply, antennas, and documentation.

Intel® IoT Gateways DK100 series development kit

Intel® IoT Gateways DK100 series development kits are optimized for industrial and energy applications. They can help you quickly develop, prototype, and deploy intelligent gateways. The kits also help maintain interoperability between new intelligent infrastructure and legacy systems, including sensors and datacenter servers. The kits include pre-integrated and pre-validated hardware and software from Intel, McAfee, and Wind River, helping you reduce time-to-market and development costs.

DK100 series development kit features

• Standards-based interfaces for I/O and Wi-Fi simplify communications down to sensors and controllers and up to datacenters and the cloud.
• McAfee Embedded Control* maximizes security by dynamically monitoring and managing whitelists.
• Wind River Intelligent Device Platform* XT and Wind River Workbench* provide a proven development environment.
• Kits are complete with fully-configured compute board, wireless communications, security software, operating system, development tools, chassis, power supply, antennas, and documentation.
